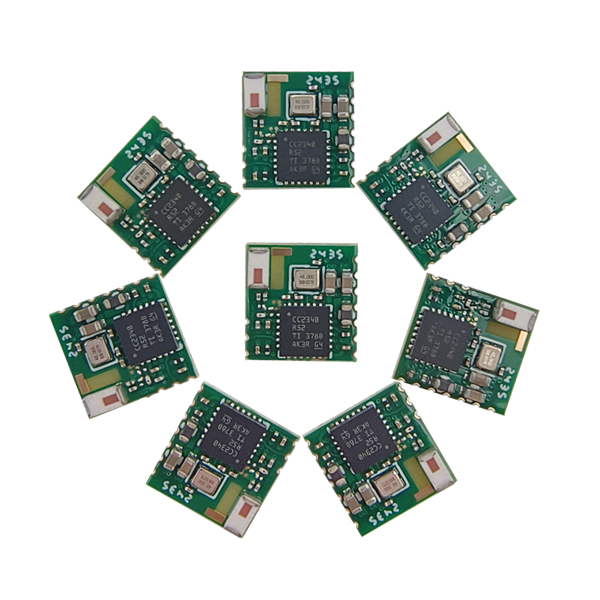

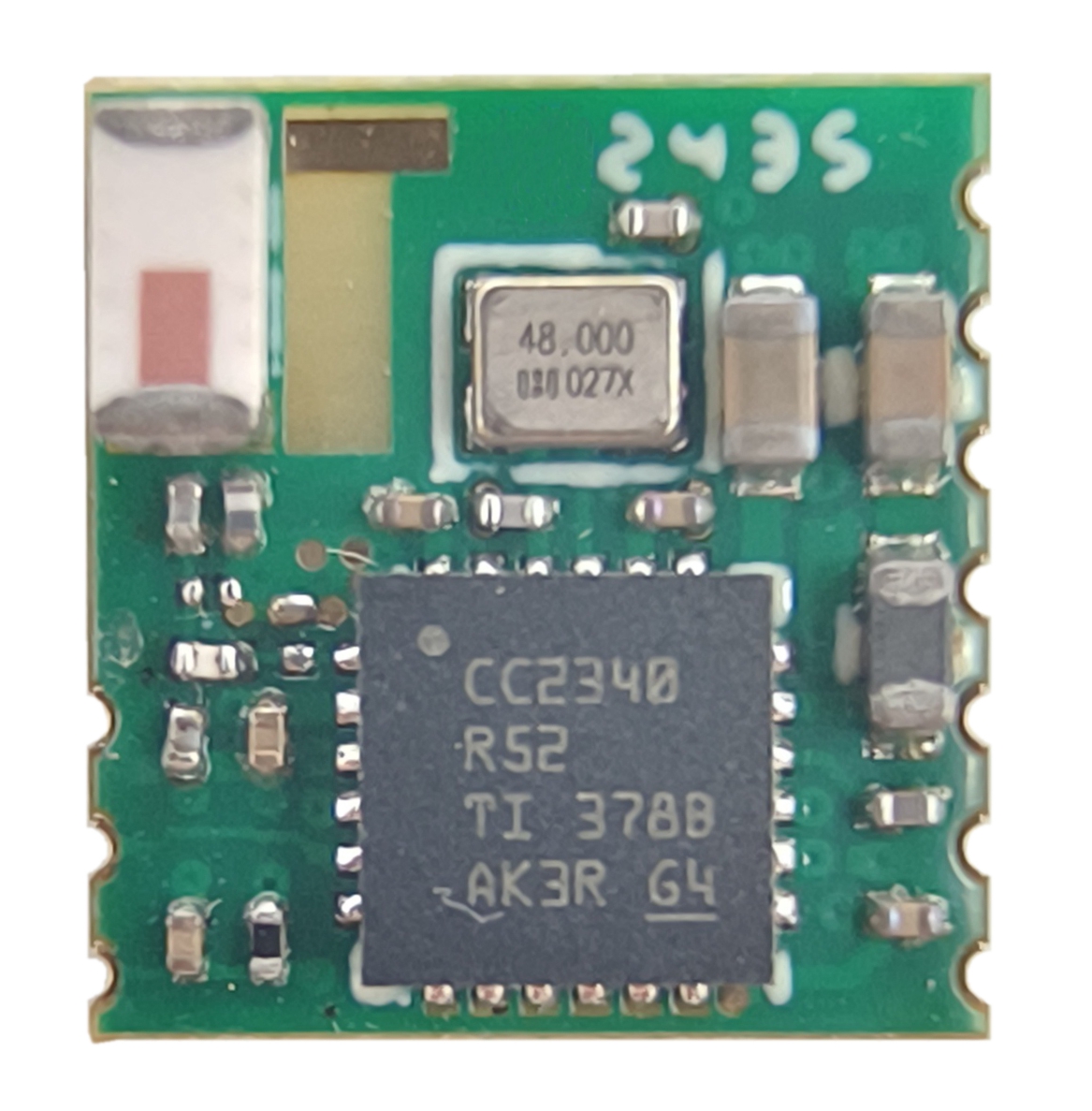

AN2340CA-A 9*9mm small size BLE5.3 Bluetooth module

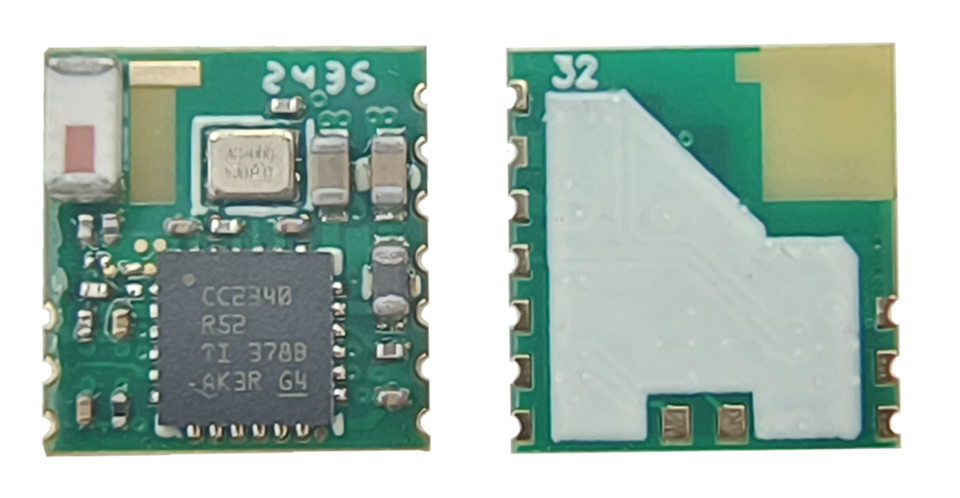

The AN2340CA-A module is a small-sized Bluetooth module based on the CC2340 chip design.

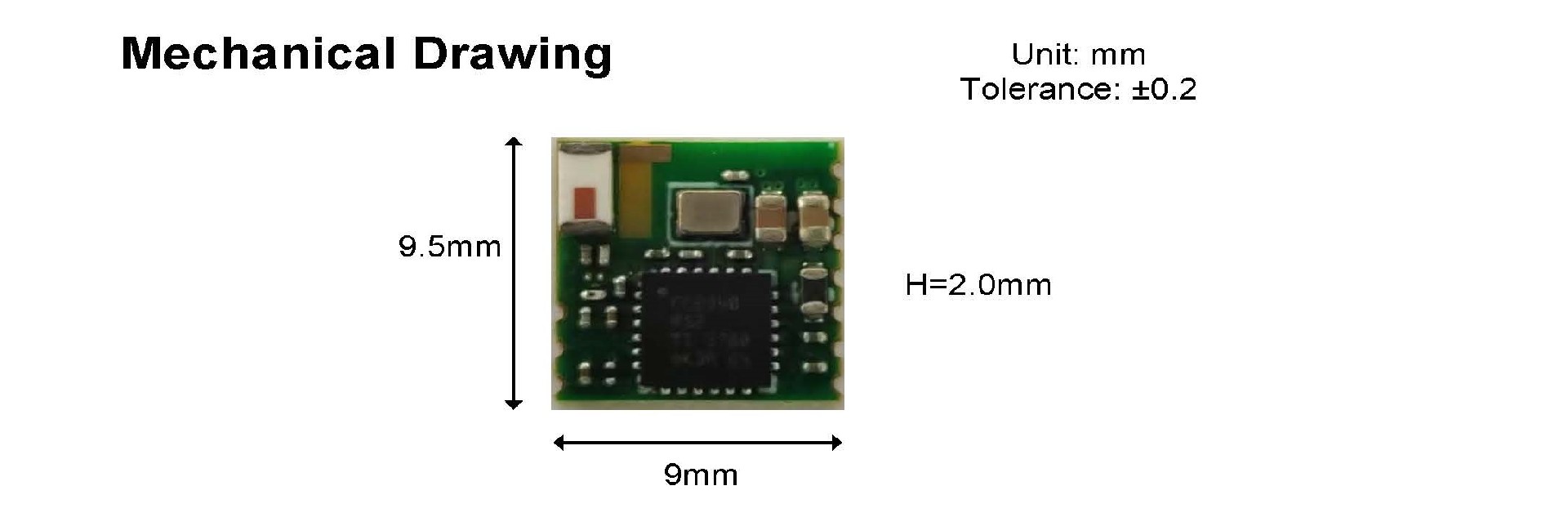

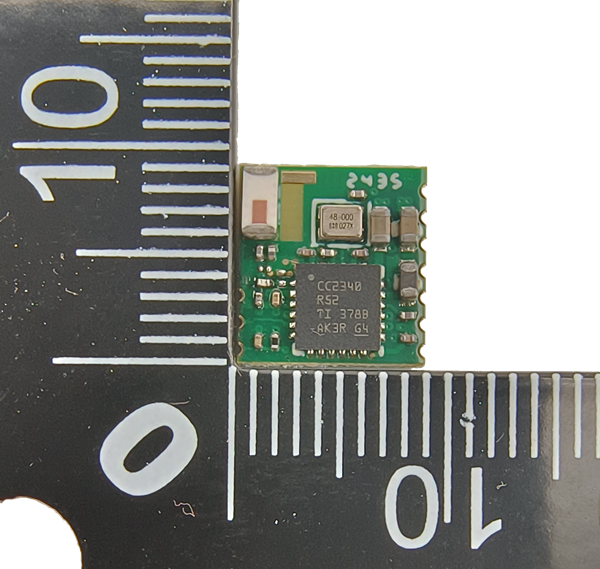

Size: 9mm × 9.5mm × 2mm.
It is more conducive to the use of products with less IO demand and small space, such as wearable products.
In order to facilitate the use of customers, we can also provide transparent software or customize software for customers.
BUY NOW

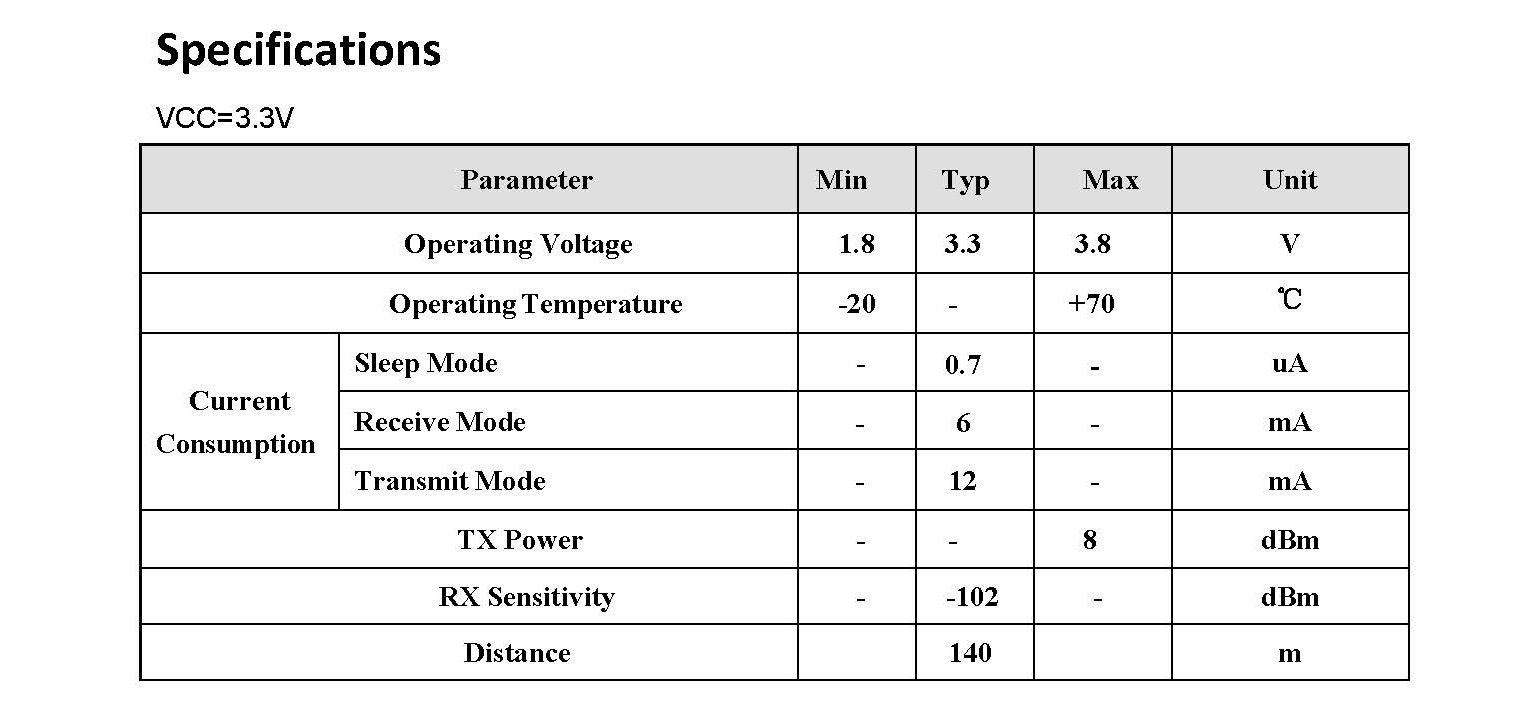

Parameter

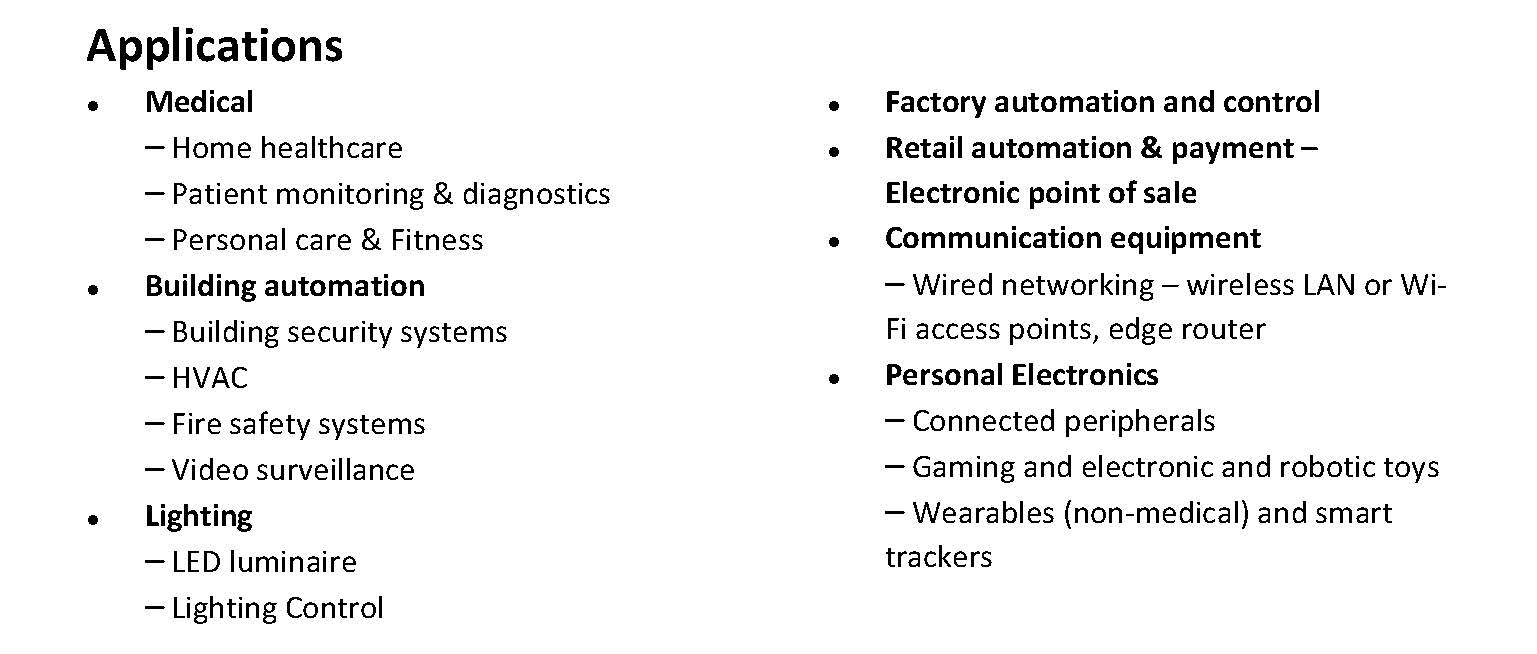

Application

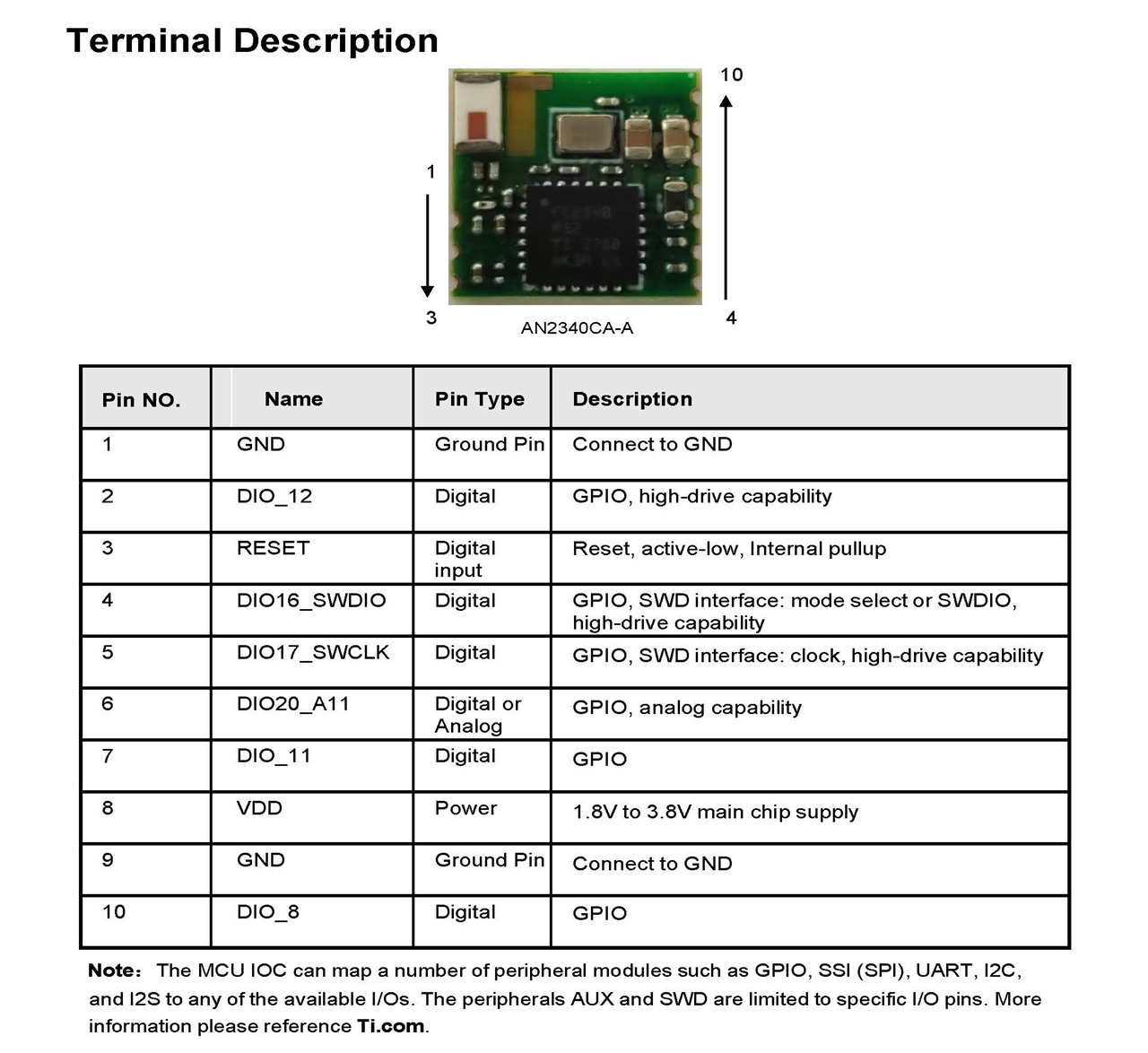

Pin@size
Download
If the information you need is not listed above, please click on the message and we will send the information to your email as soon as possible.
