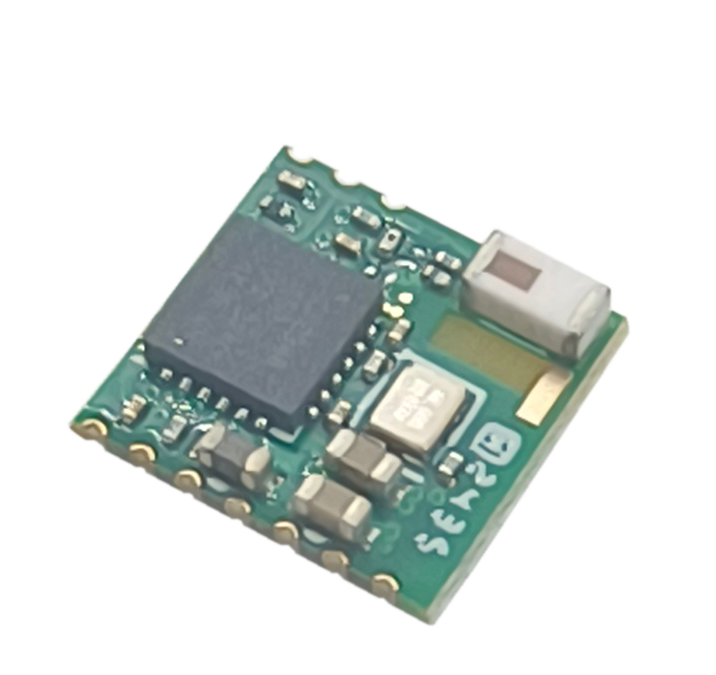

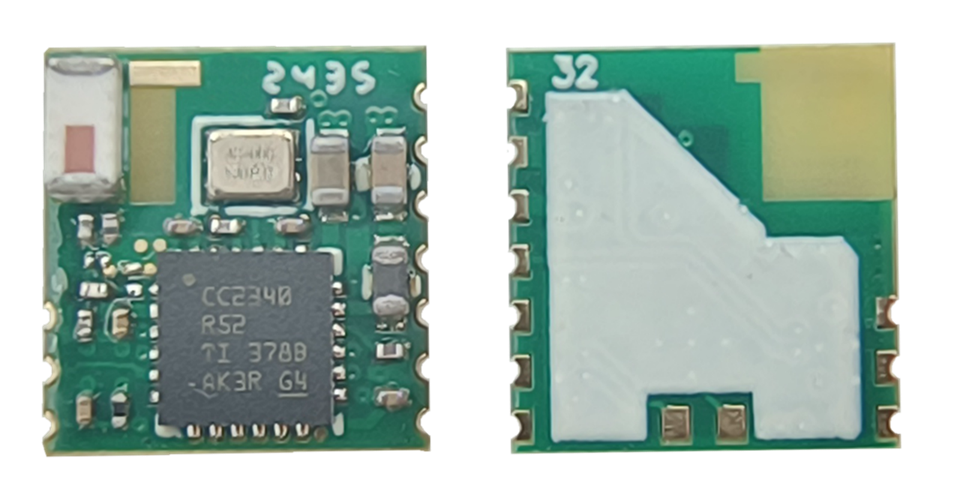

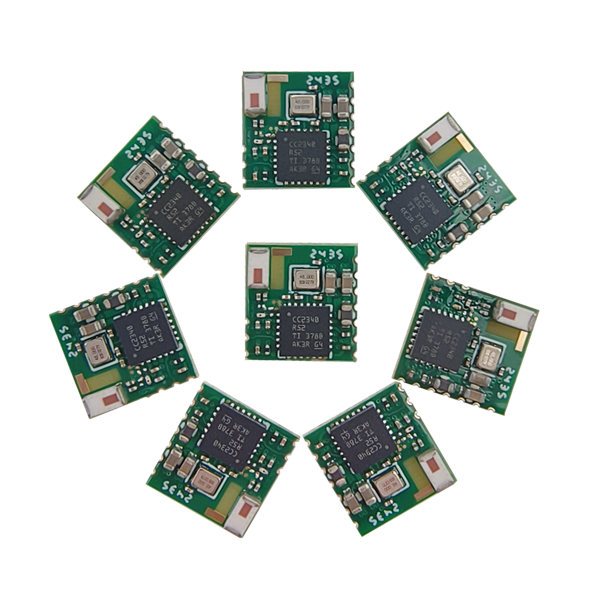

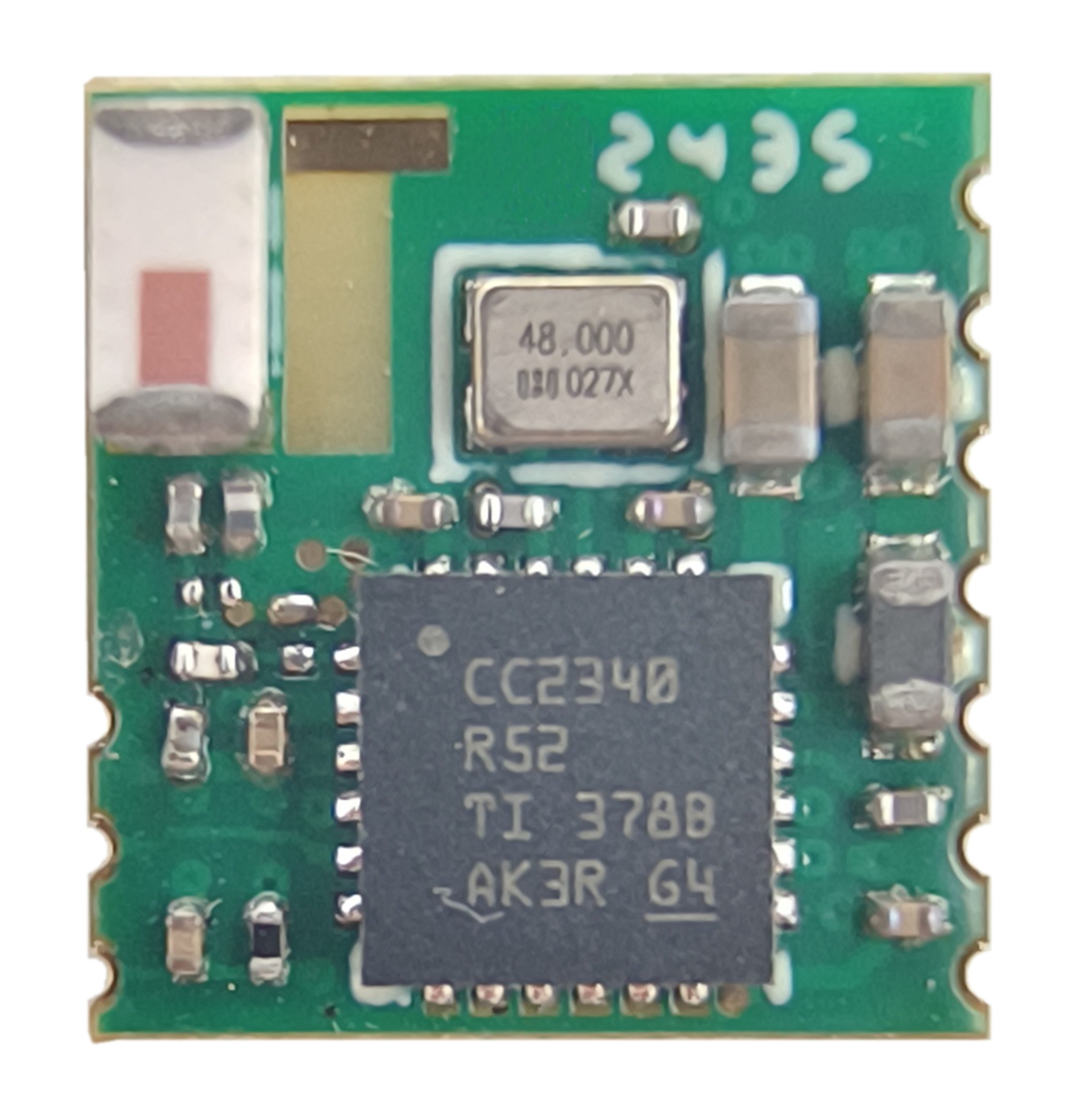

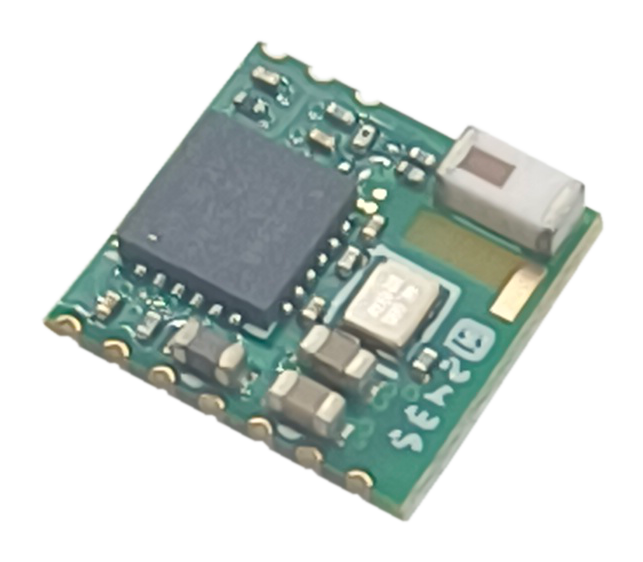

AN2340CA-A 9*9mm小尺寸 BLE5.3 蓝牙模块

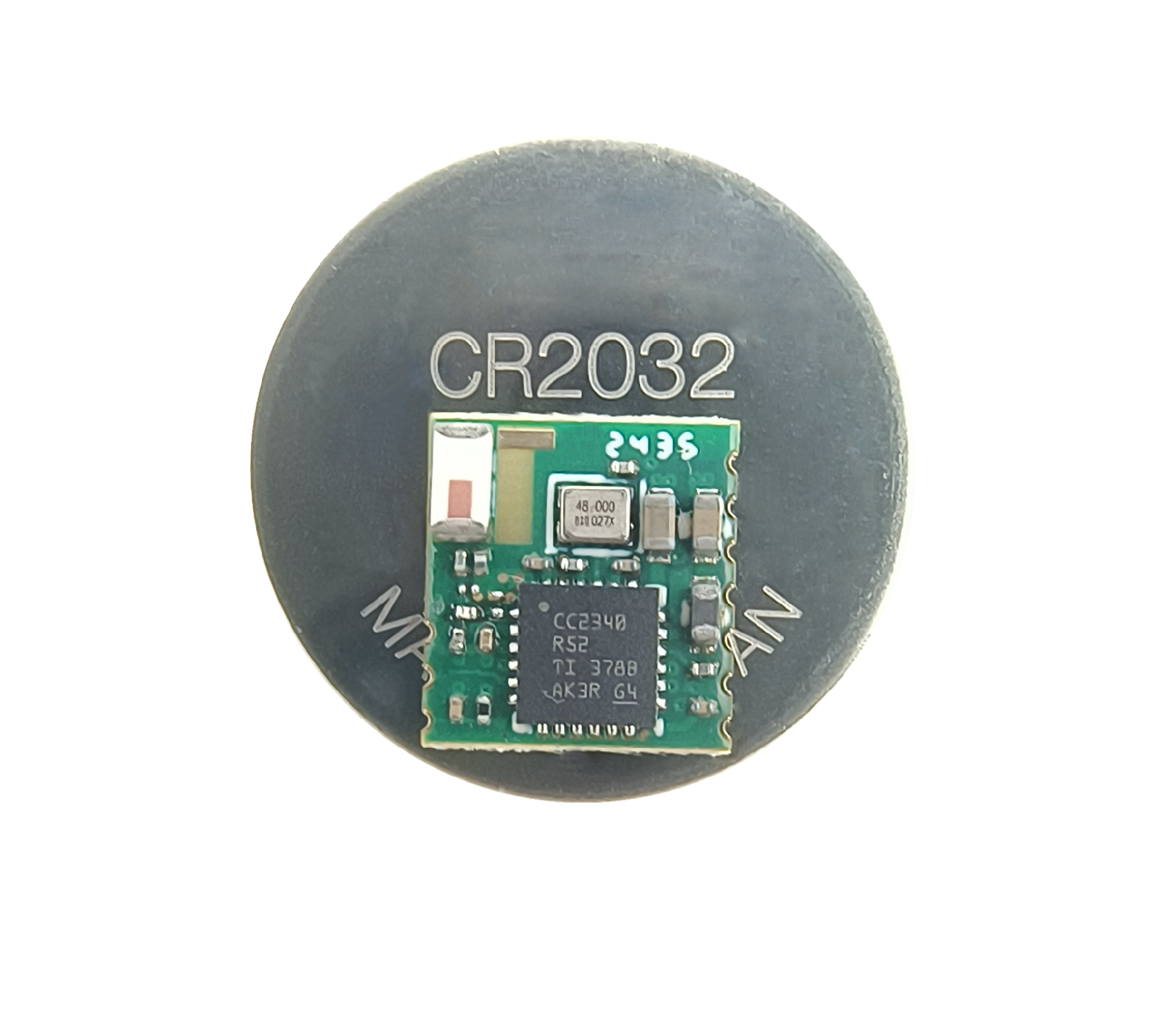

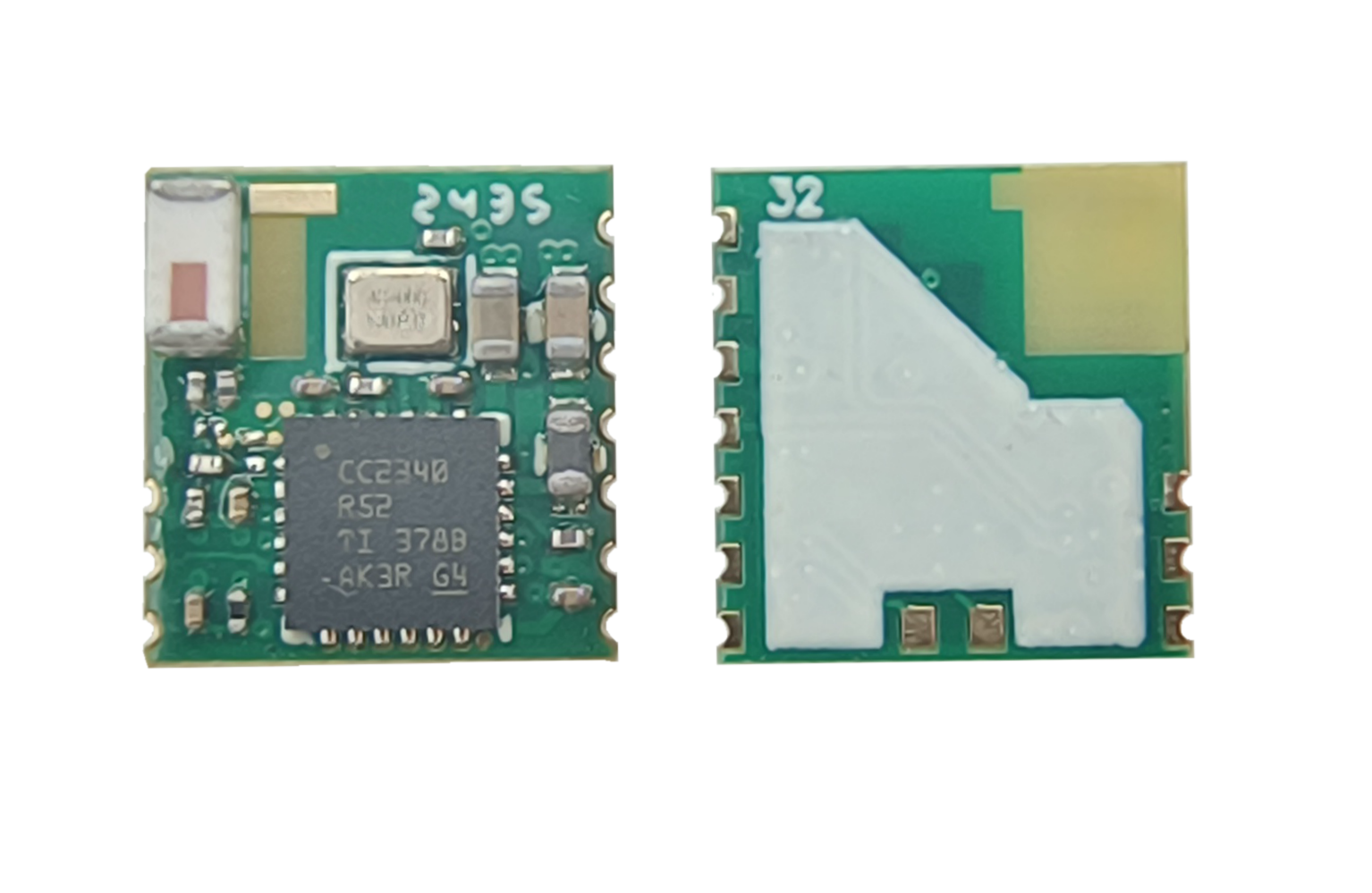

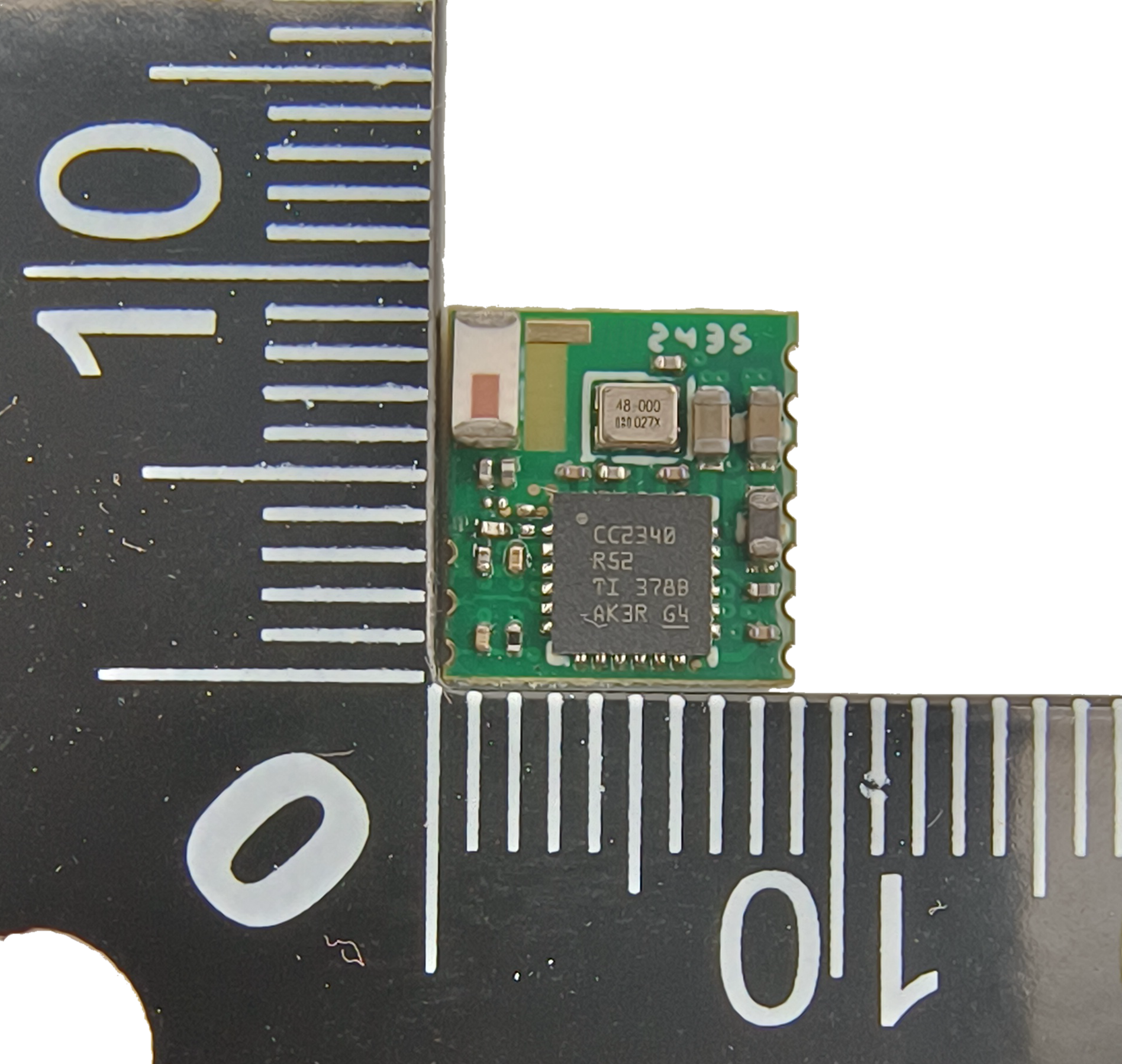

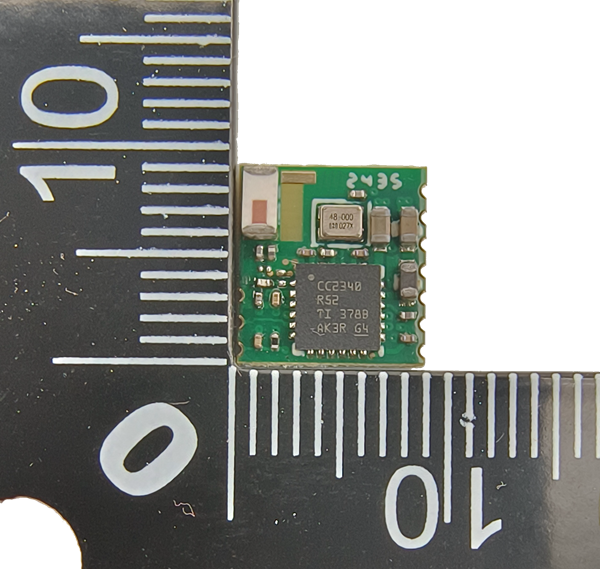

AN2340CA-A模块是基于AN2340SA-B模块设计的小尺寸蓝牙模块，尺寸：9mm×9.5mm×2mm。
更利于对IO需求少且空间小的产品使用，如穿戴产品。
为方便客户使用，我们还可提供透传软体或为客户定制软体。
BUY NOW

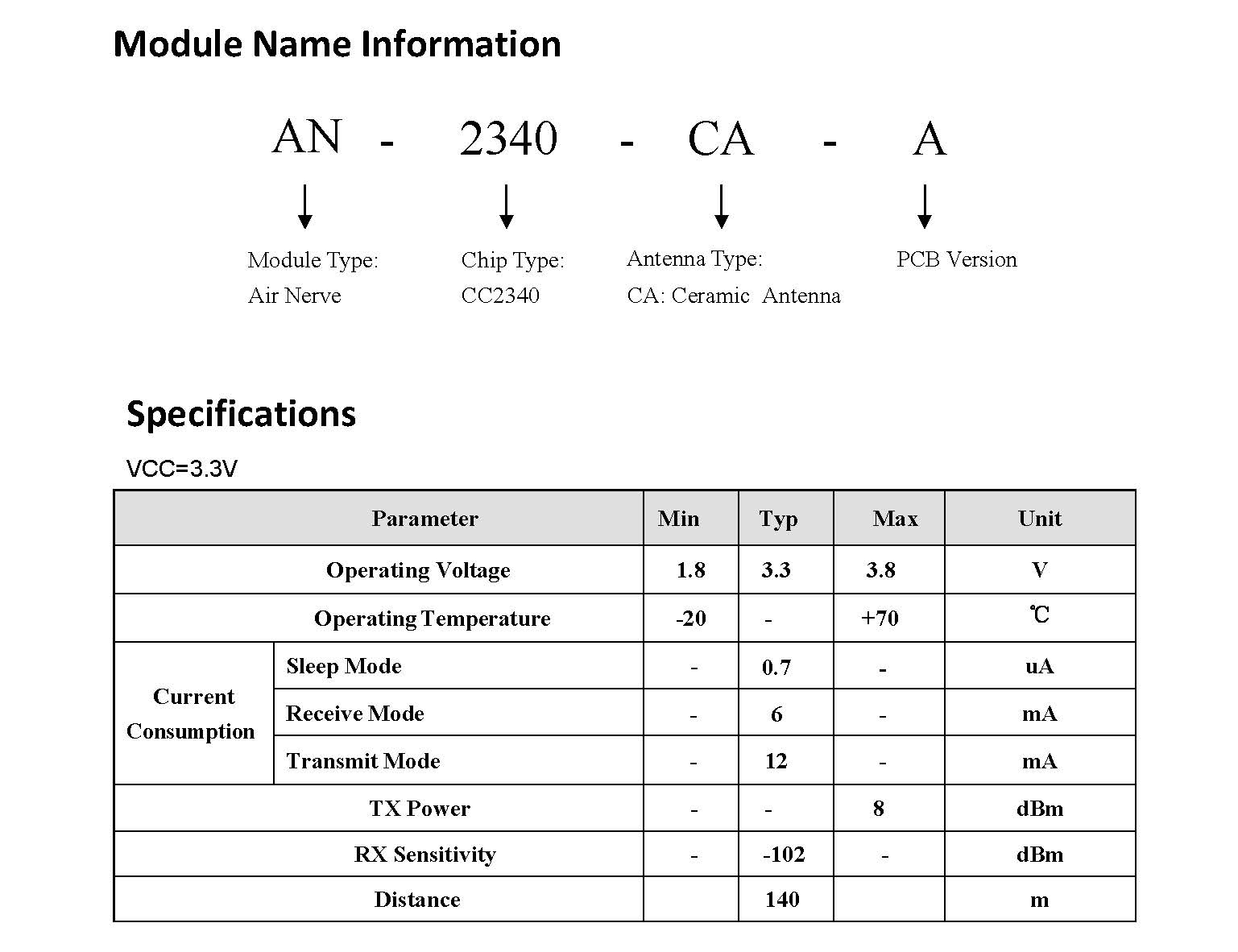

Parameter

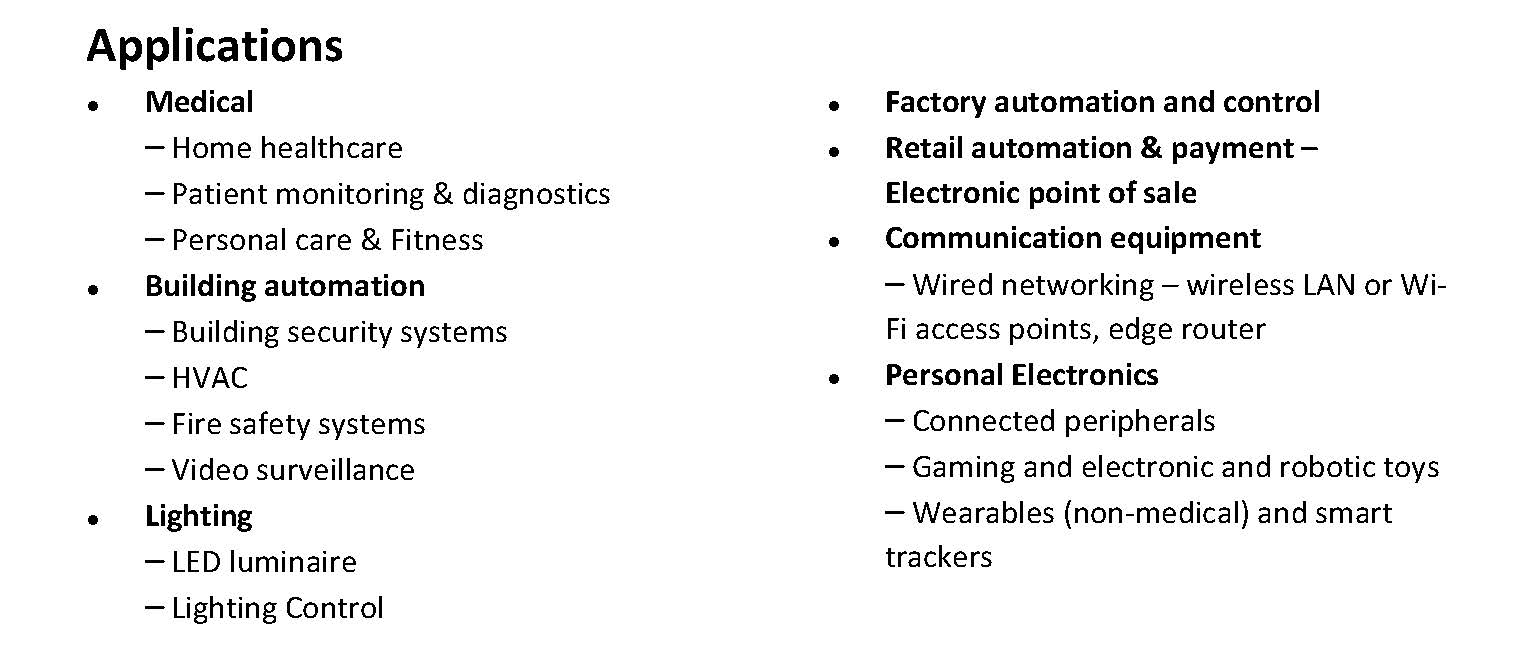

Application

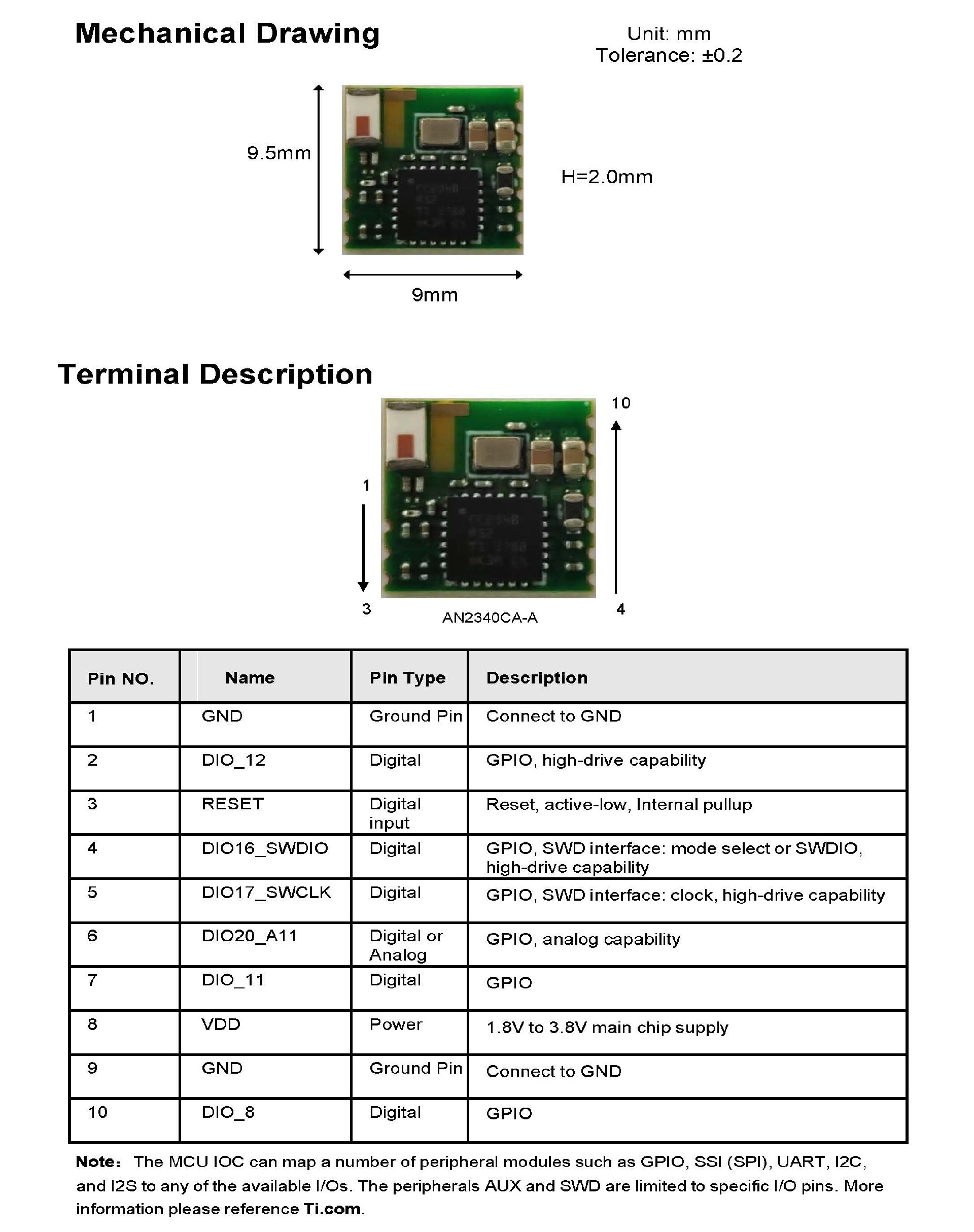

Pin@size
Download
If the information you need is not listed above, please click on the message and we will send the information to your email as soon as possible.
